Product description:

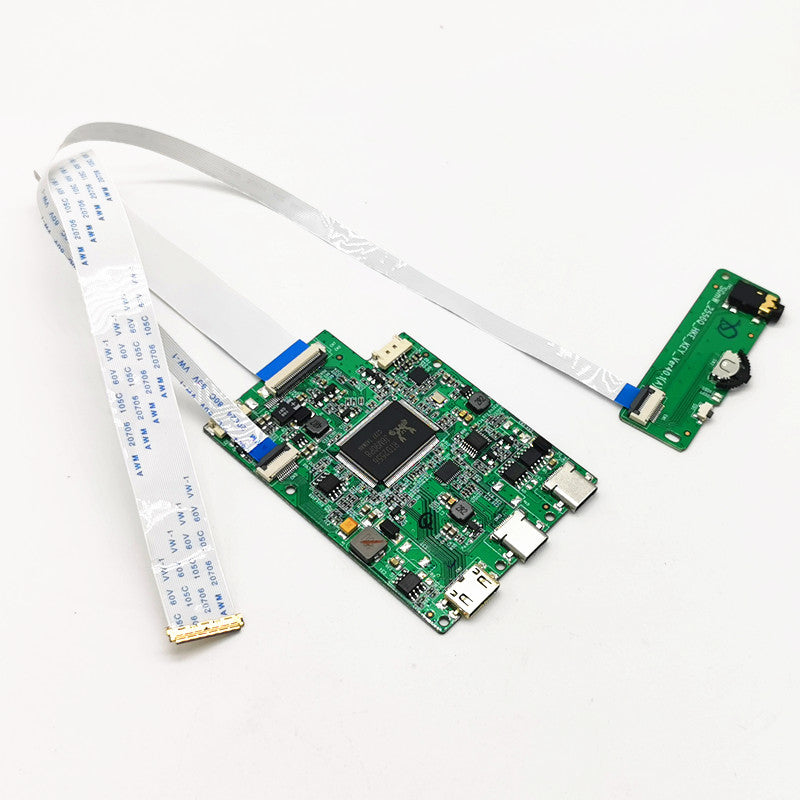

This is a great set of easy-reassembling LCD controller kit which is used to turn a bare LCD panel into a Game console display / PC monitor. It will be a surprise that your bare LCD will be of good use, and no longer be a waste. Or it is a very insteresting things that we make a monitor successfully by Game console display ourselves. Giving your lcd a new life with your fantastic idea.
This is a multi-function LCD driver board, can support the highest resolution 1920*1080@60Hz, can drive the 2LANE EDP interface LCD panel. It has a Mini HDMI port and two Type-C ports (one for powering the motherboard or charging the device in reverse). The other interface is powered). Support HDCP1.4, HDR HighDynamic illumination rendering image output (HighDynamic Range), can provide more dynamic Range and image details. Power amplifier drive has 2 ways less than 2W horn drive ability. When one of the Type-C interfaces is used for data transmission and external power supply, the other type-C interface is the PD power input interface. Huawei phone, Smartisan phone (R1/ Nut 2Pro), supports the same screen display and computer interface. Type-c port supports external power supply of 5V with a maximum of 3A. In addition, the type-C protocol supports online updating, which improves the compatibility better.

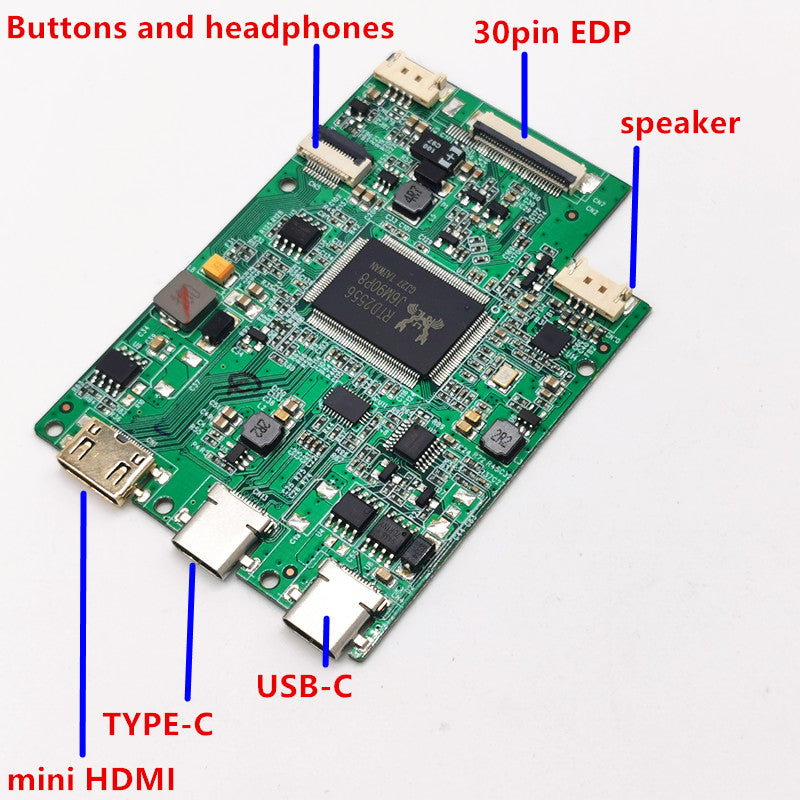

Interface Description:
1. TYPE-C interface directly transmits and exchanges data with the mobile phone
2. HDMI signal channel plug and play (automatic identification function)
3. USB-C 5V power solution
4. 3.5 headphone audio output function
5. Flat cable is easy to install; cable length is 300mm

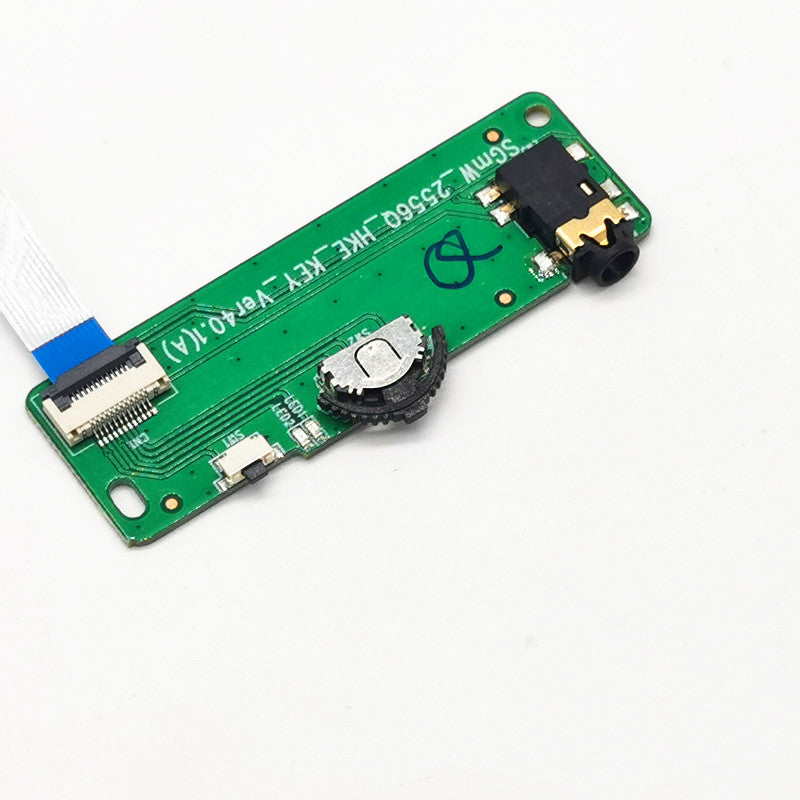

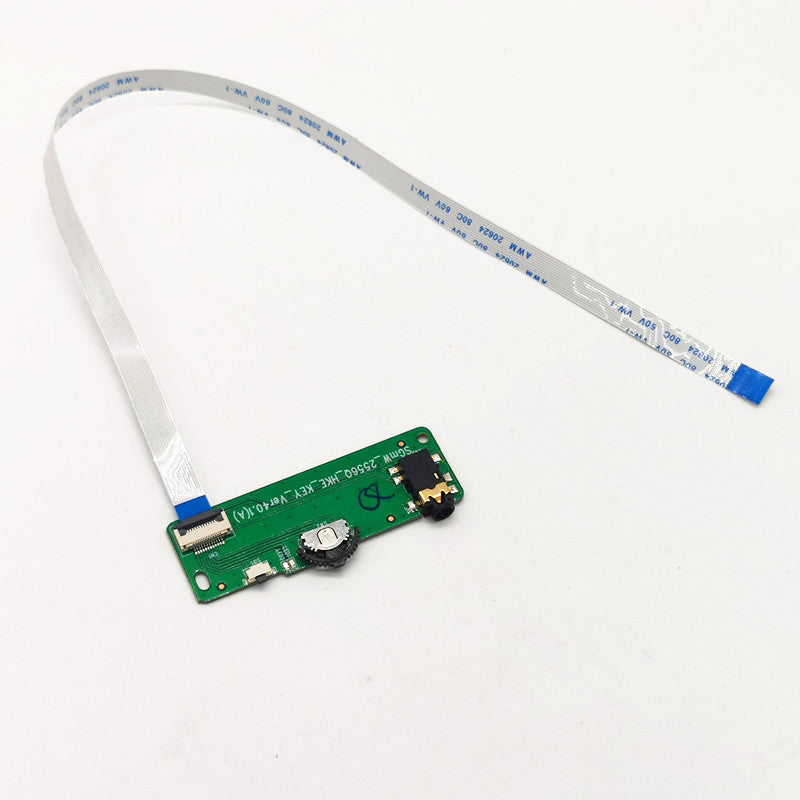

6. keypad setting One-key multi-function (press down to enter the main menu; up and down are selection keys)

Note:
1.Please pay attention to the negative and positive pole.
2. when you connect power please don't hot plug, which may break the main IC
3.don't touch the driver board, and keep it insulation, don' let metal touch it.
4.please take care of the flat cable.

Packing list：
1xPCS LCD controller board

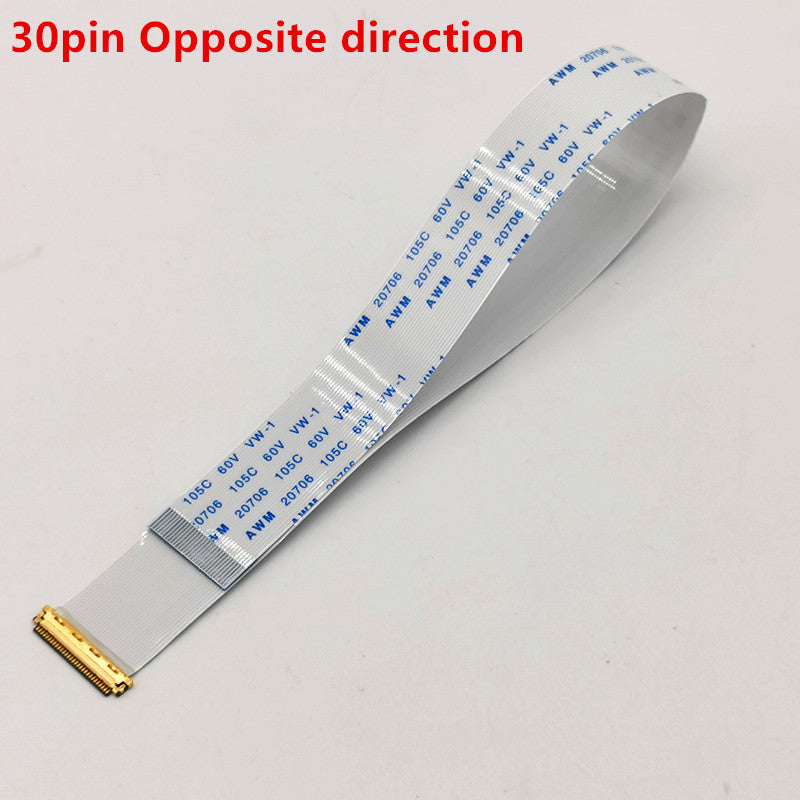

1xPCS 30pin cable
1xPCS keyboard and cable
